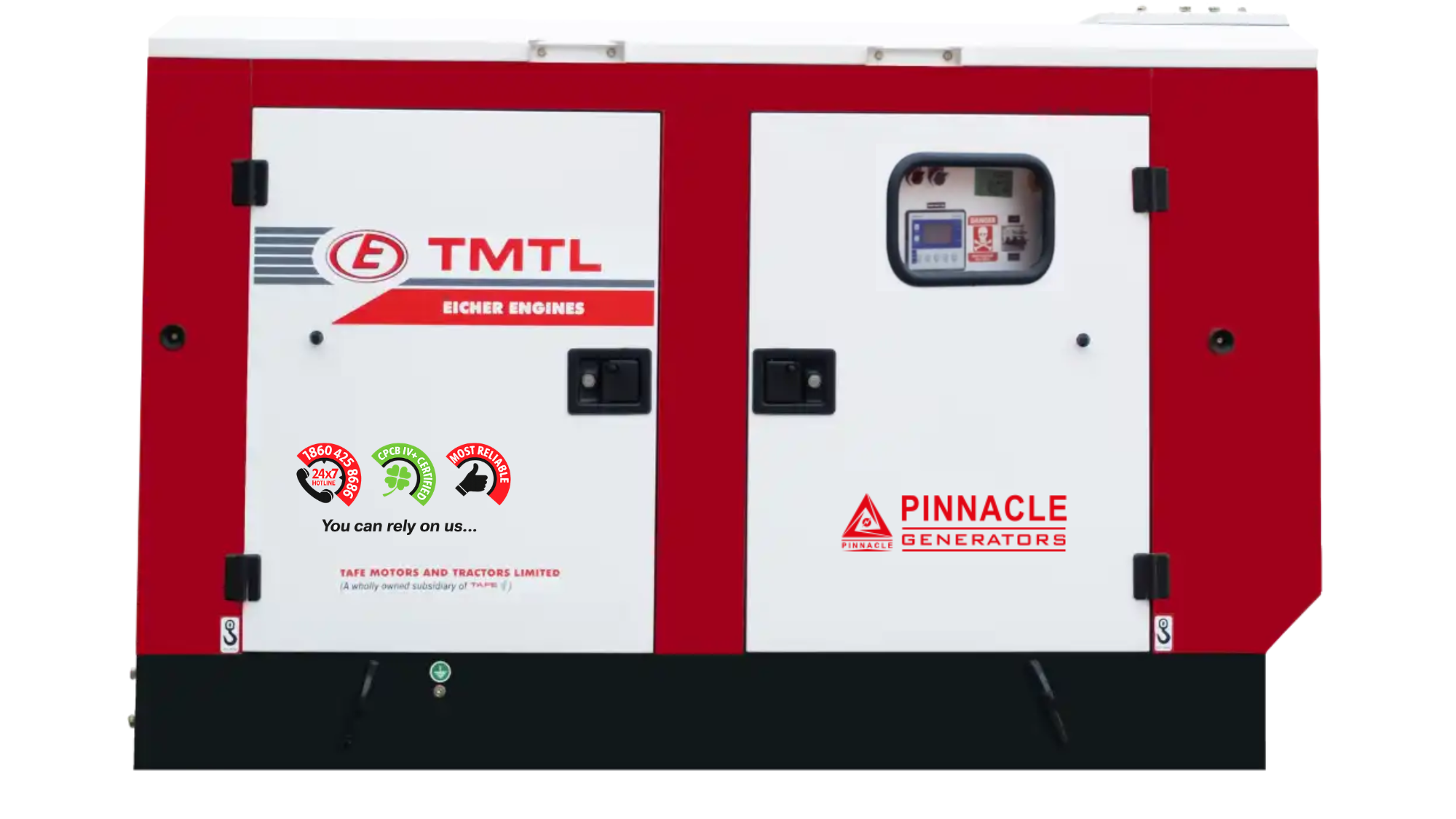

7.5 KVA - Image 1
Click to enlarge
5 KVA
5 KVA
Back to products
10 KVA
10 KVA

7.5 KVA

7.5 kVA Prime Power Performance

Power (kVA): 7.5 | Prime duty operation with Eicher Engines ensures reliable, efficient, and continuous power supply for small-scale and backup applications.

Genset model: TMTL-7.5-SP, TMTL-7.5-TP | Engine Brand: Eicher Engines | Mechanical G2 governing (up to 15 kVA), high torque system, and reliable engine design for consistent performance.

Acoustic insulation: PU FR Acoustic Foam | CRCA sheet enclosure with 40mm insulation, silencer inside canopy, compact size, large doors, and powder-coated finish for durability and low noise.

Fuel Tank: 50 Litres | Dimensions: 1500 X 850 X 1250 mm | Weight: 705 kg | Lightweight and compact design ensures easy installation, efficient fuel usage, and smooth operation.

AMF/Manual control options with TMTL CARES support, pan India service network, low maintenance design, high fuel efficiency, better load handling, long engine life, superior safety features, and reliable power quality.

Get Price Quote
Pinnaclegenerators Logo
Download Brochure
Category:

ENGINE

Engine Manufacturer : TAFE Motors and Tractors Limited
Engine Model : 110A0-EG008
Engine Brand: Eicher Engines
No. of Cylinders : 1
Aspiration : Naturally Aspirated
Engine BHP (Gross) : 11.5
Reference Standard : Engine – BS: 5514, ISO: 3046, IS:10000 Genset – ISO : 8528
Displacement (cc) : 982
Compression Ratio : 17.5±0.5 : 1
Type/Class of Governing : Mechanical G2
Bore x Stroke (mm) : 100×125
Type of cooling : Air Cooled
Lub oil Sump capacity (with filters) : 5
Engine Electrical System : 12V, 60/65 Ah

ALTERNATOR

Phase : 1 Phase-2 wire / 3 Phase-4 wire
Voltage : 230 V AC / 415 V AC
Power Alternator Type : Single Bearing, Brushless, Single / Three Phase, Insulation Class H, Voltage regulation +/- 1%, make – CG / Leroy Somer / Meccalte / Stamford
Power Factor : 0.8 lag
Rated speed / Freq : 1500 RPM/ 50Hz

  • Protection for Over / Under Voltage / Frequency / Speed
  • Over load
  • Canopy FAN fault
  • # Load unbalance
  • Low Lube oil pressure
  • High cylinder / water temperature
  • Low Fuel level
  • Radiator water low
  • Charging alternator / V-Belt failure etc.
  • Service due prompt - Control unit, will display the Service due alert based on running hours
  • Cold Shut-down provisions
  • EGR related errors – Warning
  • Low Inducement
  • Severe Inducement Communication – CAN and RS-485

Warranty Terms

Warranty period covers 2 Years or 5000 Hours run* (whichever is earlier) Warranty on 5C covers 5 Years or 5000 Hours run* (whichever is earlier)
* Terms and conditions apply

Prime Power

Applicable for supplying power to varying electrical load for unlimited hours. Prime Power (PRP) is in accordance with ISO 8528.
10% overload capability is available in accordance with ISO 3046, AS 2789, DIN 6271 and BS 5514.
