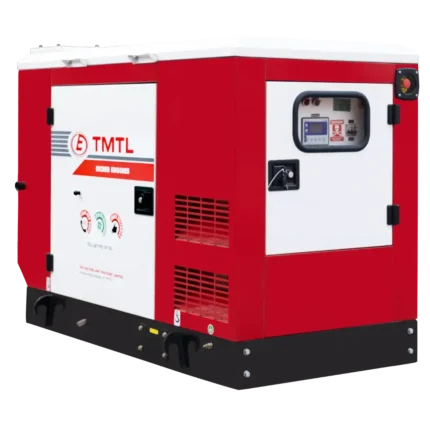

25 KVA
25 KVA

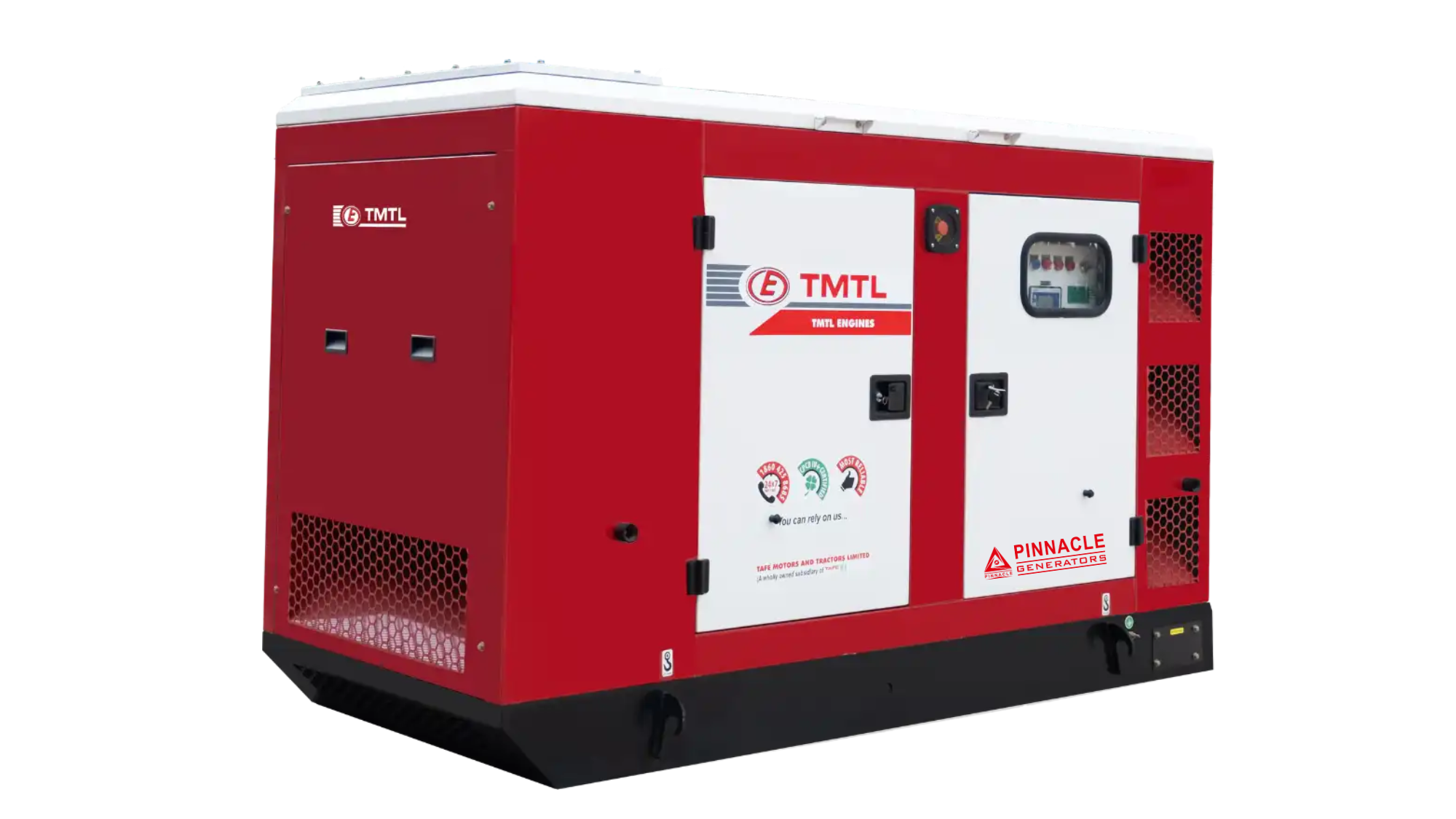

20 KVA

20 kVA Prime Power Performance

Power (kVA): 20 | Prime duty operation with Eicher Engines ensures efficient, stable and continuous power supply for commercial and industrial applications.

Genset model: TMTL-20-SP, TMTL-20-TP | Engine Brand: Eicher Engines | CRS electronic G3 governing (20 kVA onwards), mechanical G2 governing (up to 15 kVA), high torque and turbocharged performance system.

Acoustic insulation: PU FR Acoustic Foam | CRCA sheet enclosure with 40mm insulation, silencer inside canopy, compact design, large doors on both sides, and powder-coated finish for durability and noise reduction.

Fuel Tank: 100 Litres | Dimensions: 2050 X 900 X 1275 mm | Weight: 1020 kg | Designed for compact installation, optimized fuel efficiency, and easy service access.

AMF/Manual control options with TMTL CARES support, pan India service network, low maintenance design, high fuel efficiency, better load handling, long engine life, superior power quality, and enhanced safety features.

Get Price Quote
Pinnaclegenerators Logo
Download Brochure
Category:

ENGINE

Engine Manufacturer : TAFE Motors and Tractors Limited
Engine Model : 329A0-EG020
Engine Brand: Eicher Engines
No. of Cylinders : 3
Aspiration : Naturally Aspirated
Engine BHP (Gross) : 25.7
Reference Standard : Engine – BS: 5514, ISO: 3046, Genset – ISO : 8528
Displacement (cc) : 2945
Compression Ratio : 17.0±0.5 : 1
Type/Class of Governing : Mechanical G2
Bore x Stroke (mm) : 100×125
Type of cooling : Air Cooled
Lub oil Sump capacity (with filters) : 9.5
Engine Electrical System : 12V, 88/90 Ah

ALTERNATOR

Phase : 1 Phase-2 wire / 3 Phase-4 wire
Voltage : 230 V AC / 415 V AC
Power Alternator Type : Single Bearing, Brushless, Single / Three Phase, Insulation Class H, Voltage regulation +/- 1%, make – CG / Leroy Somer / Meccalte / Stamford
Power Factor : 0.8 lag
Rated speed / Freq : 1500 RPM/ 50Hz

  • Protection for Over / Under Voltage / Frequency / Speed
  • Over load
  • Canopy FAN fault
  • # Load unbalance
  • Low Lube oil pressure
  • High cylinder / water temperature
  • Low Fuel level
  • Radiator water low
  • Charging alternator / V-Belt failure etc.
  • Service due prompt - Control unit, will display the Service due alert based on running hours
  • Cold Shut-down provisions
  • EGR related errors – Warning
  • Low Inducement
  • Severe Inducement Communication – CAN and RS-485

Warranty Terms

Warranty period covers 2 Years or 5000 Hours run* (whichever is earlier) Warranty on 5C covers 5 Years or 5000 Hours run* (whichever is earlier)
* Terms and conditions apply

Prime Power

Applicable for supplying power to varying electrical load for unlimited hours. Prime Power (PRP) is in accordance with ISO 8528.
10% overload capability is available in accordance with ISO 3046, AS 2789, DIN 6271 and BS 5514.
