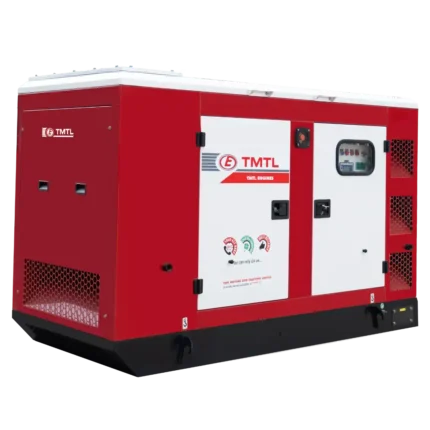

20 kVA
20 kVA

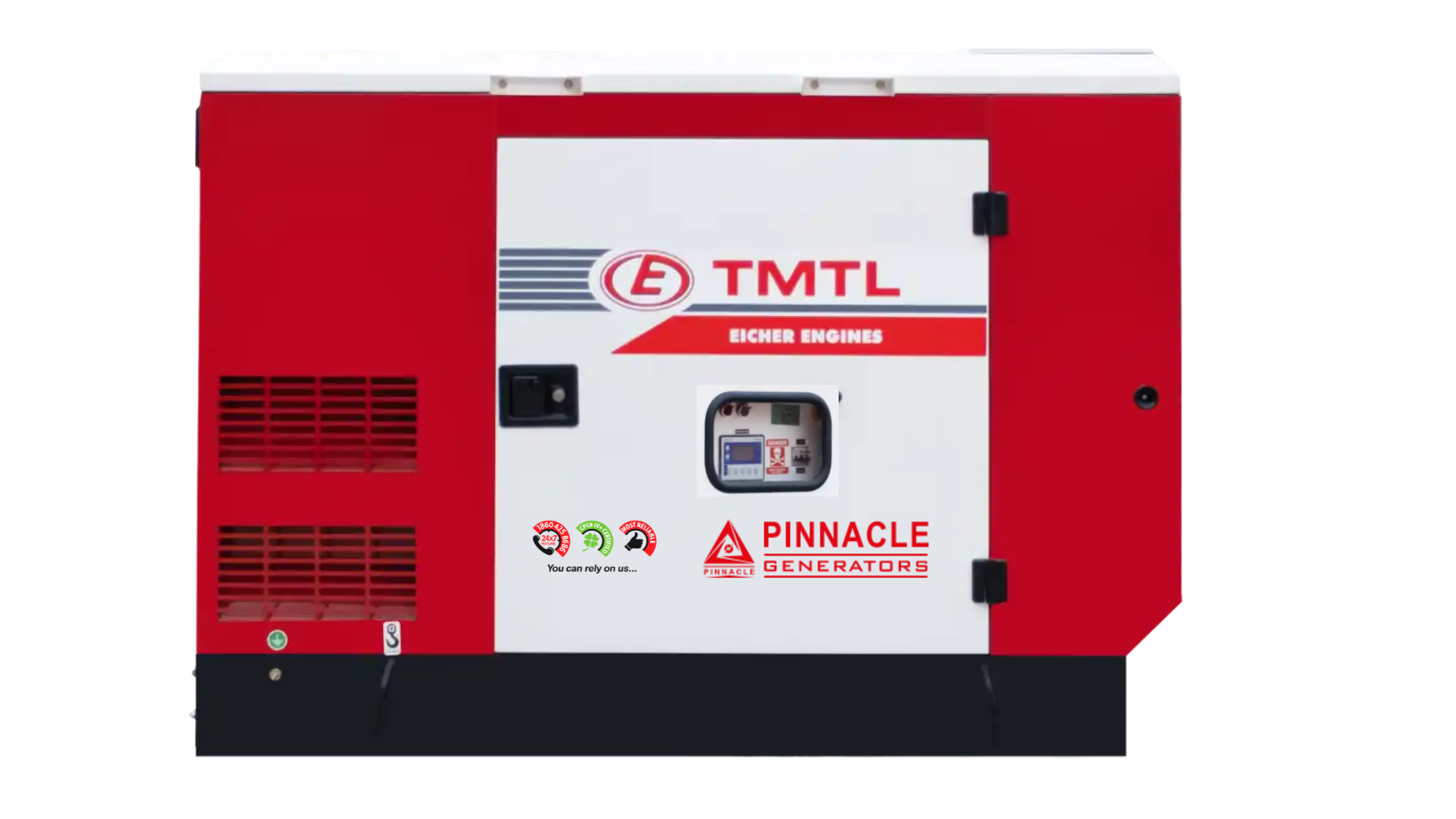

10 kVA

10 kVA Prime Power Performance

Power (kVA): 10 | Prime duty operation with Eicher Engines ensures reliable, efficient and continuous power supply for smaller commercial and backup applications.

Genset model: PG -10 | Engine Brand: Eicher Engines | Mechanical G2 governing

Acoustic insulation: PU Fire Retardant | CRCA sheet Longer Life.

Fuel Tank: 80 Litres | Dimensions: 1800 X 900 X 1275 mm | Weight: 830 kg | Compact and lightweight design ensures easy installation, efficient fuel usage, and smooth operation.

AMF/Manual control options with TMTL CARES support, pan India service network, low maintenance design, high fuel efficiency, better load handling, long engine life, superior safety features, and reliable power quality.

Get Price Quote
Pinnaclegenerators Logo
Download Brochure
Category:

ENGINE

Engine Manufacturer : TAFE Motors and Tractors Limited
Engine Model : 115A0-EG010
Engine Brand: Eicher Engines
No. of Cylinders : 1
Aspiration : Naturally Aspirated
Engine BHP (Gross) : 17.6
Reference Standard : Engine – As per ISO 3046-1, Genset : As per ISO 8528
Displacement (cc) : 1557
Compression Ratio : 18.0±0.5 : 1
Type/Class of Governing : Mechanical G2
Bore x Stroke (mm) : 115×150
Type of cooling : Air Cooled
Lub oil Sump capacity (with filters) : 7.5
Engine Electrical System : 12V, 88/90 Ah

ALTERNATOR

Phase : 1 Phase-2 wire / 3 Phase-4 wire
Voltage : 230 V AC / 415 V AC
Power Alternator Type : Single Bearing, Brushless, Insulation Class H, Voltage regulation +/- 1%, Make – CG / Leroy Somer / Meccalte / Stamford
Power Factor : 0.8 lag
Rated speed / Freq : 1500 RPM/ 50Hz

  • Protection for Over / Under Voltage / Frequency / Speed
  • Over load
  • Canopy FAN fault
  • # Load unbalance
  • Low Lube oil pressure
  • High cylinder / water temperature
  • Low Fuel level
  • Radiator water low
  • Charging alternator / V-Belt failure etc.
  • Service due prompt - Control unit, will display the Service due alert based on running hours
  • Cold Shut-down provisions
  • EGR related errors – Warning
  • Low Inducement
  • Severe Inducement
  • Communication – CAN and RS-485

Warranty Terms

Warranty period covers 2 Years or 5000 Hours run* (whichever is earlier) Warranty on 5C covers 5 Years or 5000 Hours run* (whichever is earlier)
* Terms and conditions apply

Prime Power

Applicable for supplying power to varying electrical load for unlimited hours. Prime Power (PRP) is in accordance with ISO 8528.
10% overload capability is available in accordance with ISO 3046, AS 2789, DIN 6271 and BS 5514.
