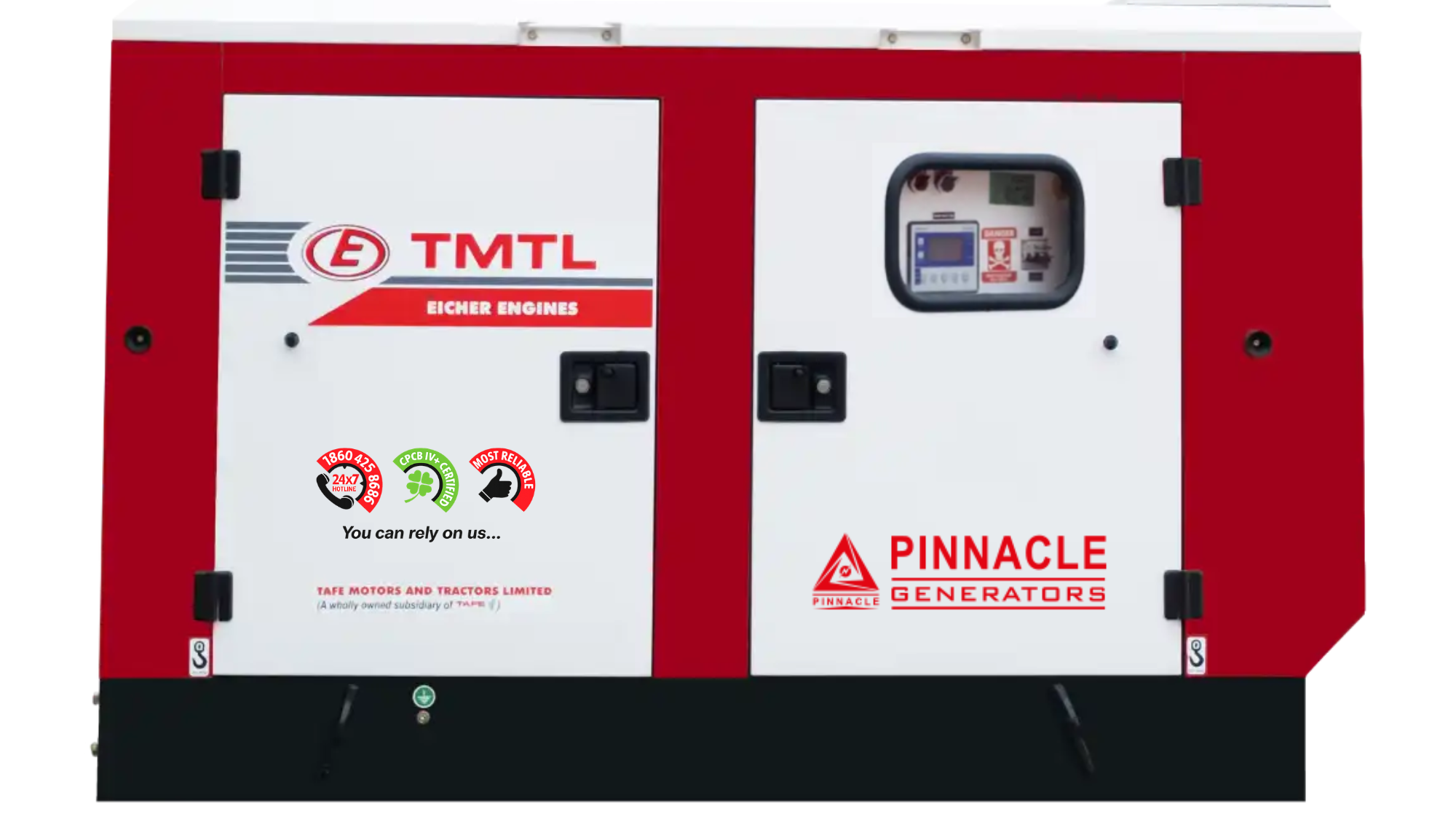

30 kVA
30 kVA Prime Power Performance
Power (kVA): 30 | Prime duty operation with Eicher Engines ensures reliable, stable, and efficient power supply for continuous applications.
Advanced Engine Technology
Genset model: TMTL-30-SP, TMTL-30-TP | Engine Brand: Eicher Engines | CRS electronic G3 governing (20 kVA onwards), turbocharger with intercooler (30 kVA onwards), and high torque design for better efficiency.
Silent Acoustic Enclosure System
Acoustic insulation: PU FR Acoustic Foam | CRCA sheet enclosure with 40mm insulation, silencer inside canopy, compact build, large doors, stainless steel fittings, and powder-coated finish.
Fuel Efficient & Compact Design
Fuel Tank: 100 Litres | Dimensions: 2150 X 1000 X 1425 mm | Weight: 1230 kg | Designed for compact installation, efficient fuel usage, and easy maintenance access.
Service, Safety & Long-Term Benefits
AMF/Manual control options with TMTL CARES support, pan India service network, low maintenance design, best fuel efficiency, better load handling, superior power quality, enhanced safety, and long engine life.
ENGINE
Engine Manufacturer : TAFE Motors and Tractors Limited
Engine Model : 329A0-EG030
Engine Brand: Eicher Engines
No. of Cylinders : 3
Aspiration : Turbo Charged Inter-cooled
Engine BHP (Gross) : 40.5
Reference Standard : Engine – BS: 5514, ISO: 3046, Genset – ISO : 8528
Displacement (cc) : 2945
Compression Ratio : 17.0±0.5 : 1
Type/Class of Governing : CRS Electronic G3
Bore x Stroke (mm) : 100×125
Type of cooling : Air Cooled
Lub oil Sump capacity (with filters) : 9.5
Engine Electrical System : 12V, 88/90 Ah
ALTERNATOR
Phase : 1 Phase-2 wire / 3 Phase-4 wire
Voltage : 230 V AC / 415 V AC
Power Alternator Type : Single Bearing, Brushless, Single / Three Phase, Insulation Class H, Voltage regulation +/- 1%, make – CG / Leroy Somer / Meccalte / Stamford
Power Factor : 0.8 lag
Rated speed / Freq : 15000 RPM/ 50Hz
- Protection for Over / Under Voltage / Frequency / Speed
- Over load
- Canopy FAN fault
- # Load unbalance
- Low Lube oil pressure
- High cylinder / water temperature
- Low Fuel level
- Radiator water low
- Charging alternator / V-Belt failure etc.
- Service due prompt - Control unit, will display the Service due alert based on running hours
- Cold Shut-down provisions
- EGR related errors – Warning, Low Inducement, Severe Inducement
- Communication – CAN and RS-485
Warranty Terms
Warranty period covers 2 Years or 5000 Hours run* (whichever is earlier) Warranty on 5C covers 5 Years or 5000 Hours run* (whichever is earlier)
* Terms and conditions apply
Prime Power
Applicable for supplying power to varying electrical load for unlimited hours. Prime Power (PRP) is in accordance with ISO 8528.
10% overload capability is available in accordance with ISO 3046, AS 2789, DIN 6271 and BS 5514.
