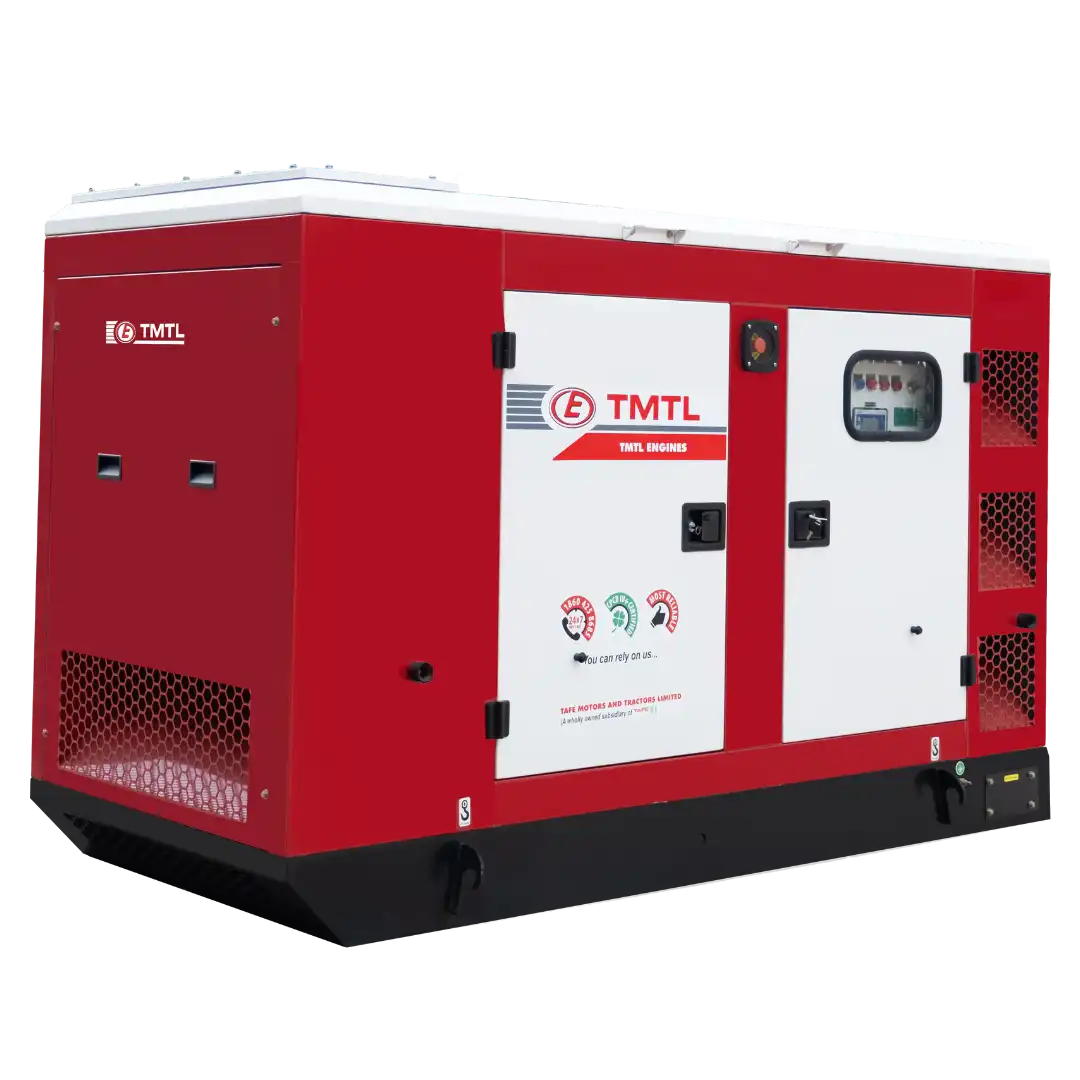

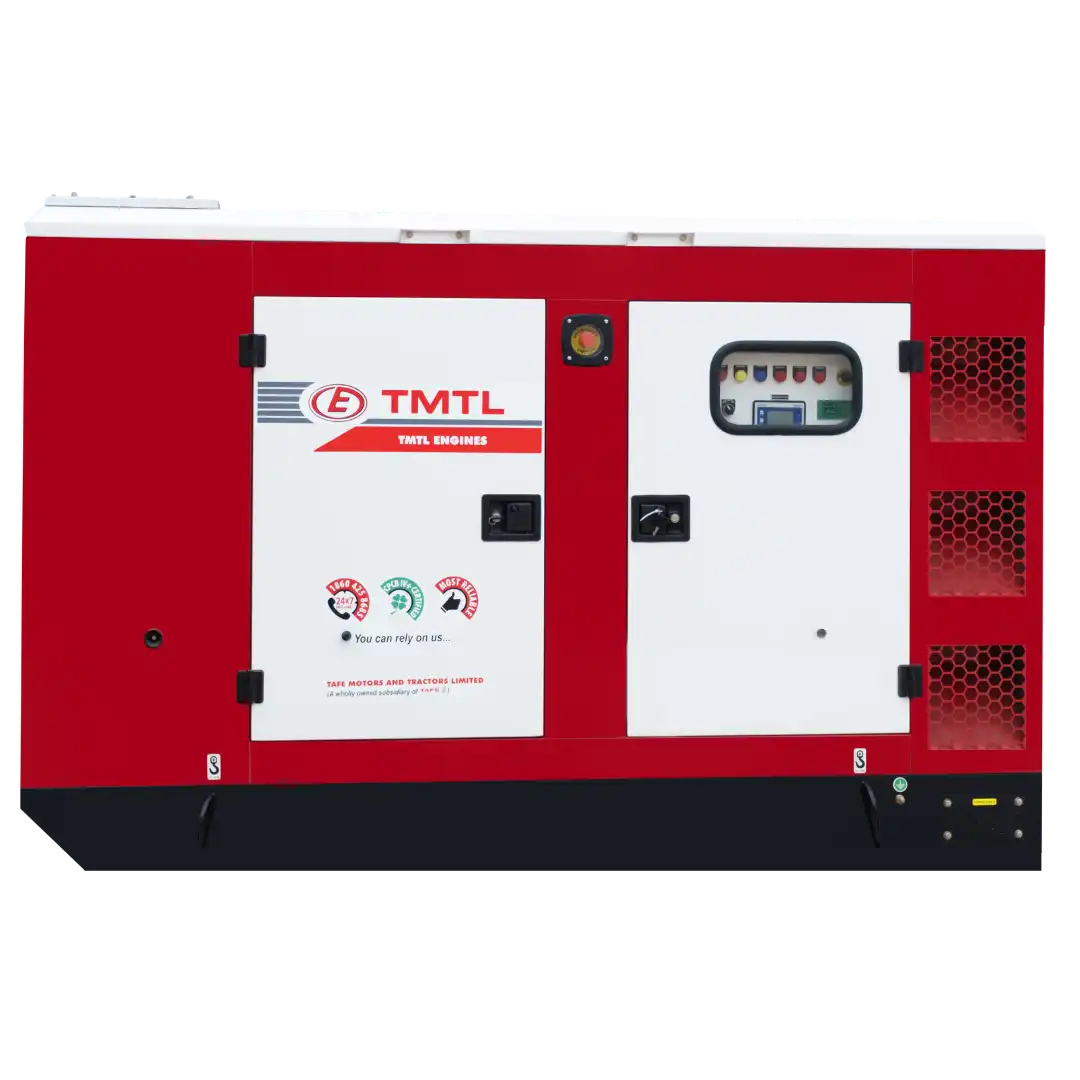

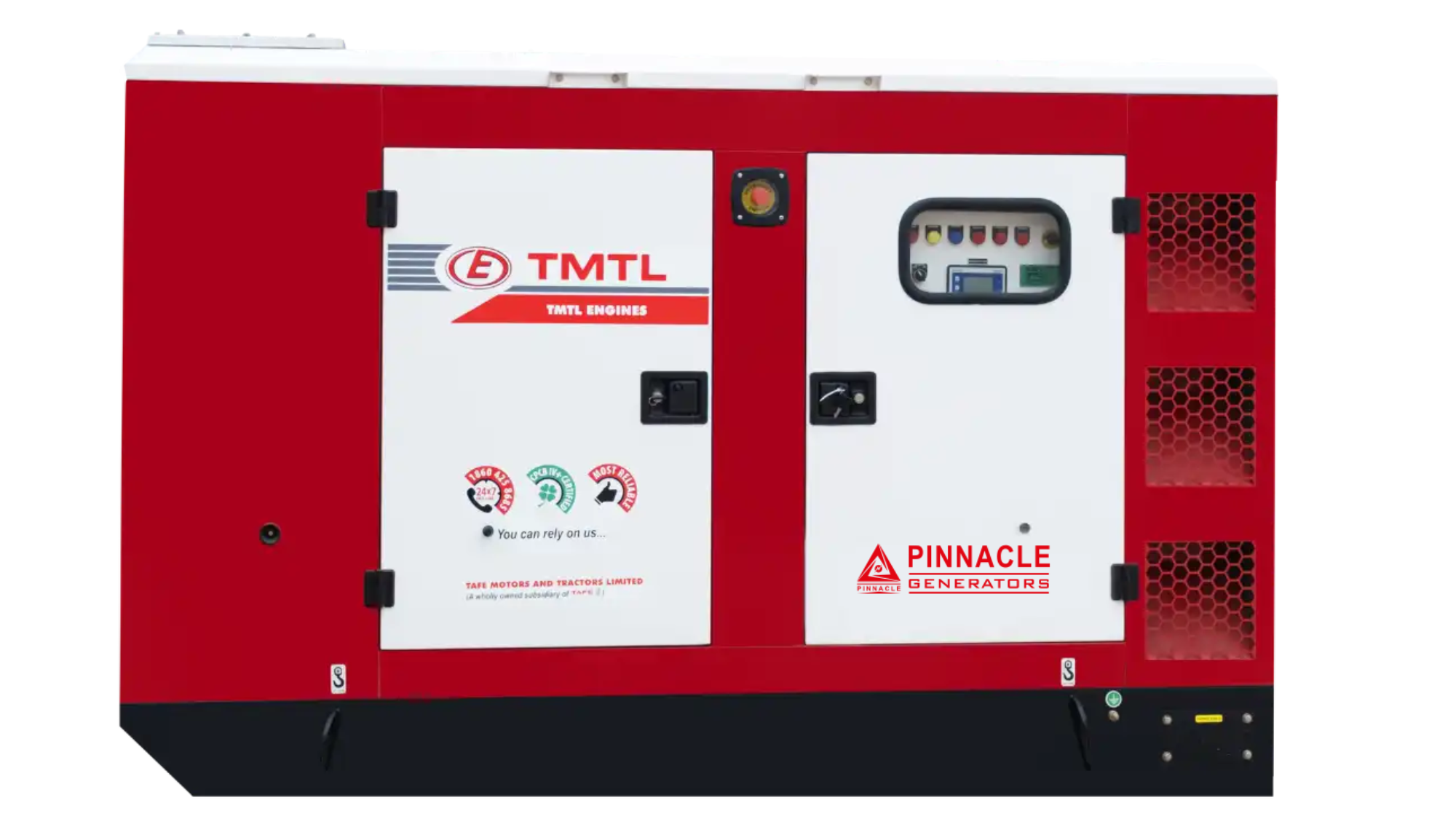

60 kVA
Power (kVA) : 60
Genset model : TMTL-60-TP
Engine Brand: TMTL Engines
Duty : Prime
Control panel : Options Available for AMF/Manual control
Acoustic insulation : PU FR-Acoustic Foam
DG Dimensions in mm (LXBXH) : 2500 X 1100 X 1575
Fuel Tank capacity (Lt) : 125
Weight of DG set (kg) : 1470
ENGINE
Engine Manufacturer : TAFE Motors and Tractors Limited
Engine Model : 333W0-EG060
Engine Brand: Eicher Engines
No. of Cylinders : 3
Aspiration : Turbo Charged Inter-cooled
Engine BHP (Gross) : 75
Reference Standard : Engine – BS: 5514, ISO: 3046, Genset – ISO : 8528
Displacement (cc) : 3298
Compression Ratio : 17.5±0.5 : 1
Type/Class of Governing : CRS Electronic G3
Bore x Stroke (mm) : 108×120
Type of cooling : Water Cooled
Lub oil Sump capacity (with filters) : 8.0
Engine Electrical System : 12V, 99/100 Ah
ALTERNATOR
Phase : 3 Phase-4 wire
Voltage : 415 V AC
Power Alternator Type : Single Bearing, Brushless, Single / Three Phase, Insulation Class H, Voltage regulation +/- 1%, make – CG / Leroy Somer / Meccalte / Stamford
Power Factor : 0.8 lag
Rated speed / Freq : 1500 RPM/ 50Hz
Protection for Over / Under Voltage / Frequency / Speed, Over load, Canopy FAN fault,# Load unbalance, Low Lube oil pressure, High cylinder / water temperature, Low Fuel level, Radiator water low, Charging alternator / V-Belt failure etc. Service due prompt - Control unit, will display the Service due alert based on running hours, Cold Shut-down provisions, EGR related errors – Warning, Low Inducement, Severe Inducement Communication – CAN and RS-485
Warranty Terms
Warranty period covers 2 Years or 5000 Hours run* (whichever is earlier) Warranty on 5C covers 5 Years or 5000 Hours run* (whichever is earlier)
* Terms and conditions apply
Prime Power
Applicable for supplying power to varying electrical load for unlimited hours. Prime Power (PRP) is in accordance with ISO 8528.
10% overload capability is available in accordance with ISO 3046, AS 2789, DIN 6271 and BS 5514.
