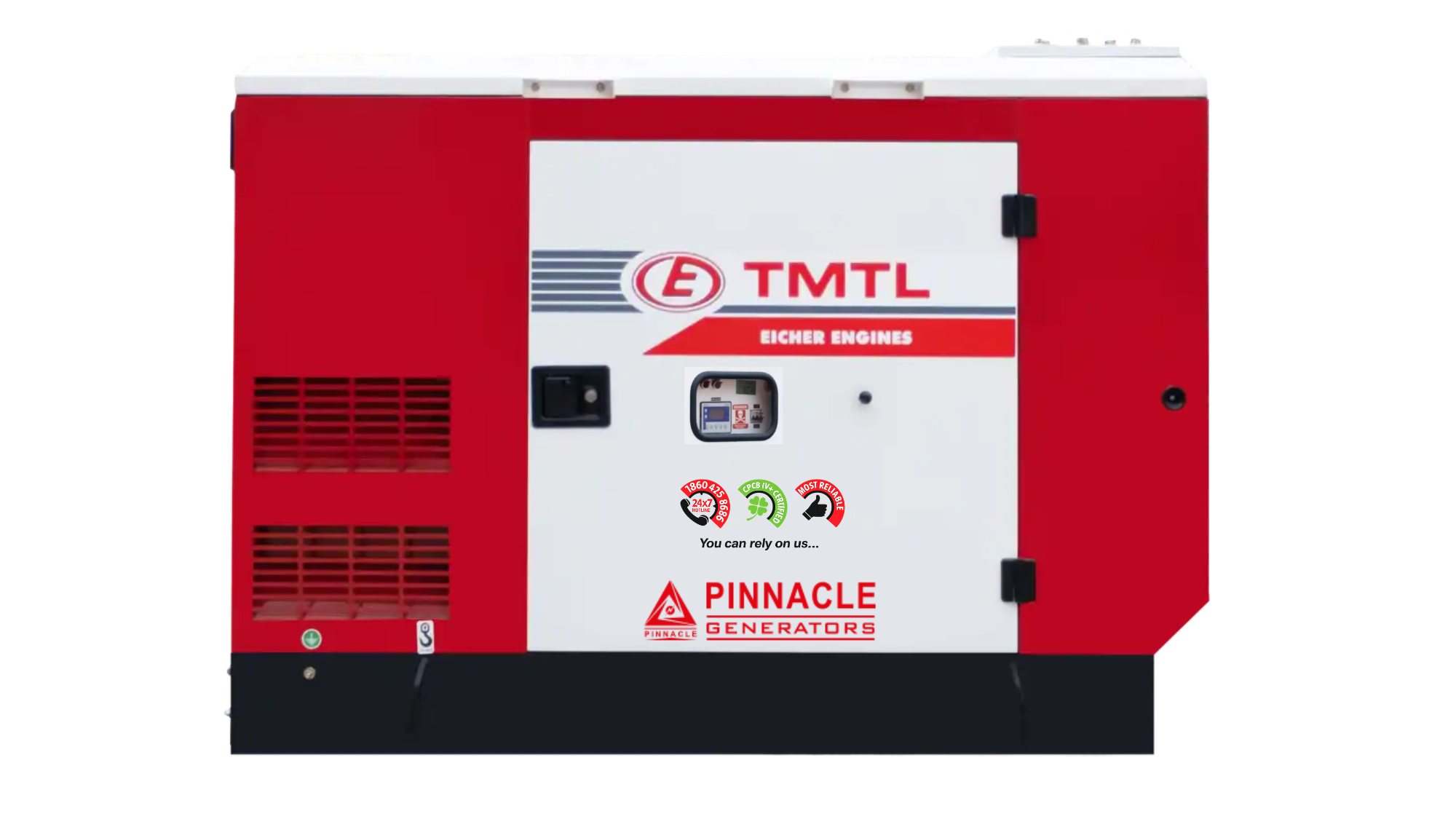

35 KVA - Image 1
Click to enlarge
25 KVA
25 KVA
Back to products
40 KVA
40 KVA

35 KVA

35 kVA Prime Power Performance

Power (kVA): 35 | Prime duty operation with Eicher Engines ensures reliable, efficient, and consistent power output for commercial and industrial usage.

Genset model: TMTL-35-SP, TMTL-35-TP | Engine Brand: Eicher Engines | CRS electronic G3 governing (20 kVA onwards), mechanical G2 governing (up to 15 kVA), turbocharger with intercooler (30 kVA onwards), high torque performance system.

Acoustic insulation: PU FR Acoustic Foam | CRCA sheet enclosure with 40mm foam, silencer inside canopy, large access doors, powder coating finish, and superior vibration control system.

Fuel Tank: 100 Litres | Dimensions: 2150 X 1000 X 1425 mm | Weight: 1255 kg | Compact design for easy installation, optimized fuel usage, and smooth operational performance.

AMF/Manual control options with TMTL CARES support, pan India service network, low maintenance design, high fuel efficiency, better load handling, long engine life, and superior safety standards.

Get Price Quote
Pinnaclegenerators Logo
Download Brochure
Category:

ENGINE

Engine Manufacturer : TAFE Motors and Tractors Limited
Engine Model : 329A0-EG035
Engine Brand: Eicher Engines
No. of Cylinders : 3
Aspiration : Turbo Charged Inter-cooled
Engine BHP (Gross) : 47.5
Reference Standard : Engine – BS: 5514, ISO: 3046, Genset – ISO : 8528
Displacement (cc) : 2945
Compression Ratio : 17.0±0.5 : 1
Type/Class of Governing : CRS Electronic G3
Bore x Stroke (mm) : 100×125
Type of cooling : Air Cooled
Lub oil Sump capacity (with filters) : 9.5
Engine Electrical System : 12V, 88/90 Ah

ALTERNATOR

Phase : 1 Phase-2 wire / 3 Phase-4 wire
Voltage : 230 V AC / 415 V AC
Power Alternator Type : Single Bearing, Brushless, Single / Three Phase, Insulation Class H, Voltage regulation +/- 1%, make – CG / Leroy Somer / Meccalte / Stamford
Power Factor : 0.8 lag
Rated speed / Freq : 1500 RPM/ 50Hz

  • Protection for Over / Under Voltage / Frequency / Speed
  • Over load
  • Canopy FAN fault
  • # Load unbalance
  • Low Lube oil pressure
  • High cylinder / water temperature
  • Low Fuel level
  • Radiator water low
  • Charging alternator / V-Belt failure etc.
  • Service due prompt - Control unit, will display the Service due alert based on running hours
  • Cold Shut-down provisions
  • EGR related errors – Warning
  • Low Inducement
  • Severe Inducement Communication – CAN and RS-485

Warranty Terms

Warranty period covers 2 Years or 5000 Hours run* (whichever is earlier) Warranty on 5C covers 5 Years or 5000 Hours run* (whichever is earlier)
* Terms and conditions apply

Prime Power

Applicable for supplying power to varying electrical load for unlimited hours. Prime Power (PRP) is in accordance with ISO 8528.
10% overload capability is available in accordance with ISO 3046, AS 2789, DIN 6271 and BS 5514.
