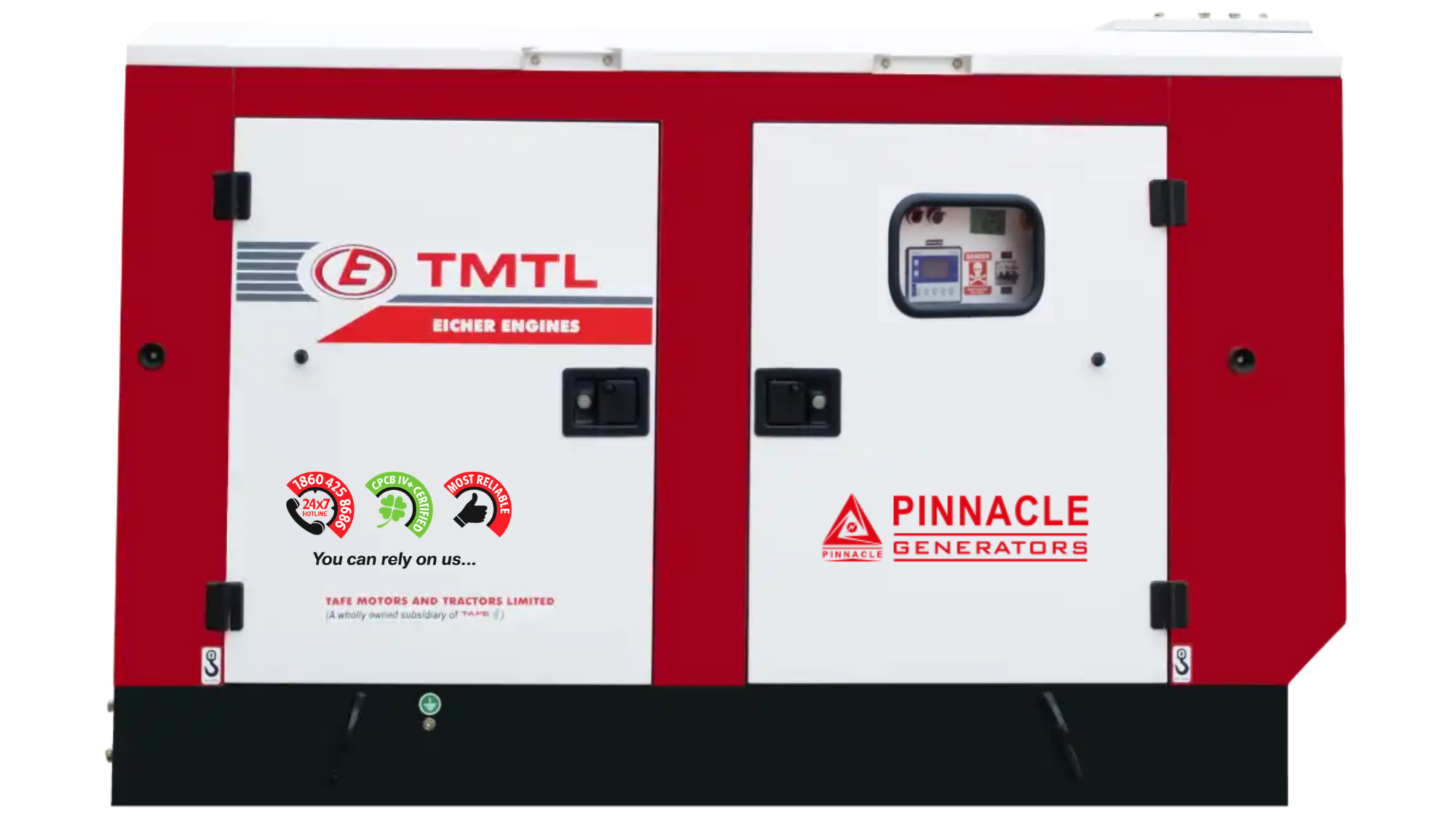

40 KVA - Image 1
Click to enlarge
35 KVA
35 KVA
Back to products
45 KVA
45 KVA

40 KVA

40 kVA Prime Power Performance

Power (kVA): 40 | Prime duty operation ensures stable output with TMTL engines designed for efficiency and reliability in continuous usage.

Genset model: TMTL-40-SP, TMTL-40-TP | Engine Brand: TMTL Engines | CRS electronic G3 governing (20 kVA onwards), mechanical G2 governing (up to 15 kVA), turbocharger with intercooler (30 kVA onwards).

Acoustic insulation: PU FR Acoustic Foam | CRCA sheet enclosure with 40mm insulation, silencer inside canopy, powder coating, and robust safety locking system for durability and low noise.

Fuel Tank: 100 Litres | Dimensions: 2350 X 1000 X 1425 mm | Weight: 1240 kg | Designed for compact installation, efficient fuel usage, and easy maintenance access.

AMF/Manual control options with TMTL CARES support, pan India service, low maintenance design, high fuel efficiency, better load handling, and long engine life with superior reliability.

Get Price Quote
Pinnaclegenerators Logo
Download Brochure
Category:

ENGINE

Engine Manufacturer : TAFE Motors and Tractors Limited
Engine Model : 333W0-EG040
Engine Brand: TMTL Engines
No. of Cylinders : 3
Aspiration : Turbo Charged Inter-cooled
Engine BHP (Gross) : 54
Reference Standard : Engine – BS: 5514, ISO: 3046, Genset – ISO : 8528
Displacement (cc) : 3298
Compression Ratio : 17.5±0.5 : 1
Type/Class of Governing : CRS Electronic G3
Bore x Stroke (mm) : 108×120
Type of cooling : Water Cooled
Lub oil Sump capacity (with filters) : 8.0
Engine Electrical System : 12V, 99/100 Ah

ALTERNATOR

Phase : 1 Phase-2 wire / 3 Phase-4 wire
Voltage : 230 V AC / 415 V AC
Power Alternator Type : Single Bearing, Brushless, Single / Three Phase, Insulation Class H, Voltage regulation +/- 1%, make – CG / Leroy Somer / Meccalte / Stamford
Power Factor : 0.8 lag
Rated speed / Freq : 1500 RPM/ 50Hz

  • Protection for Over / Under Voltage / Frequency / Speed
  • Over load
  • Canopy FAN fault
  • # Load unbalance
  • Low Lube oil pressure
  • High cylinder / water temperature
  • Low Fuel level
  • Radiator water low
  • Charging alternator / V-Belt failure etc.
  • Service due prompt - Control unit, will display the Service due alert based on running hours
  • Cold Shut-down provisions
  • EGR related errors – Warning
  • Low Inducement
  • Severe Inducement
  • Communication – CAN and RS-485

Warranty Terms

Warranty period covers 2 Years or 5000 Hours run* (whichever is earlier) Warranty on 5C covers 5 Years or 5000 Hours run* (whichever is earlier)
* Terms and conditions apply

Prime Power

Applicable for supplying power to varying electrical load for unlimited hours. Prime Power (PRP) is in accordance with ISO 8528.
10% overload capability is available in accordance with ISO 3046, AS 2789, DIN 6271 and BS 5514.
