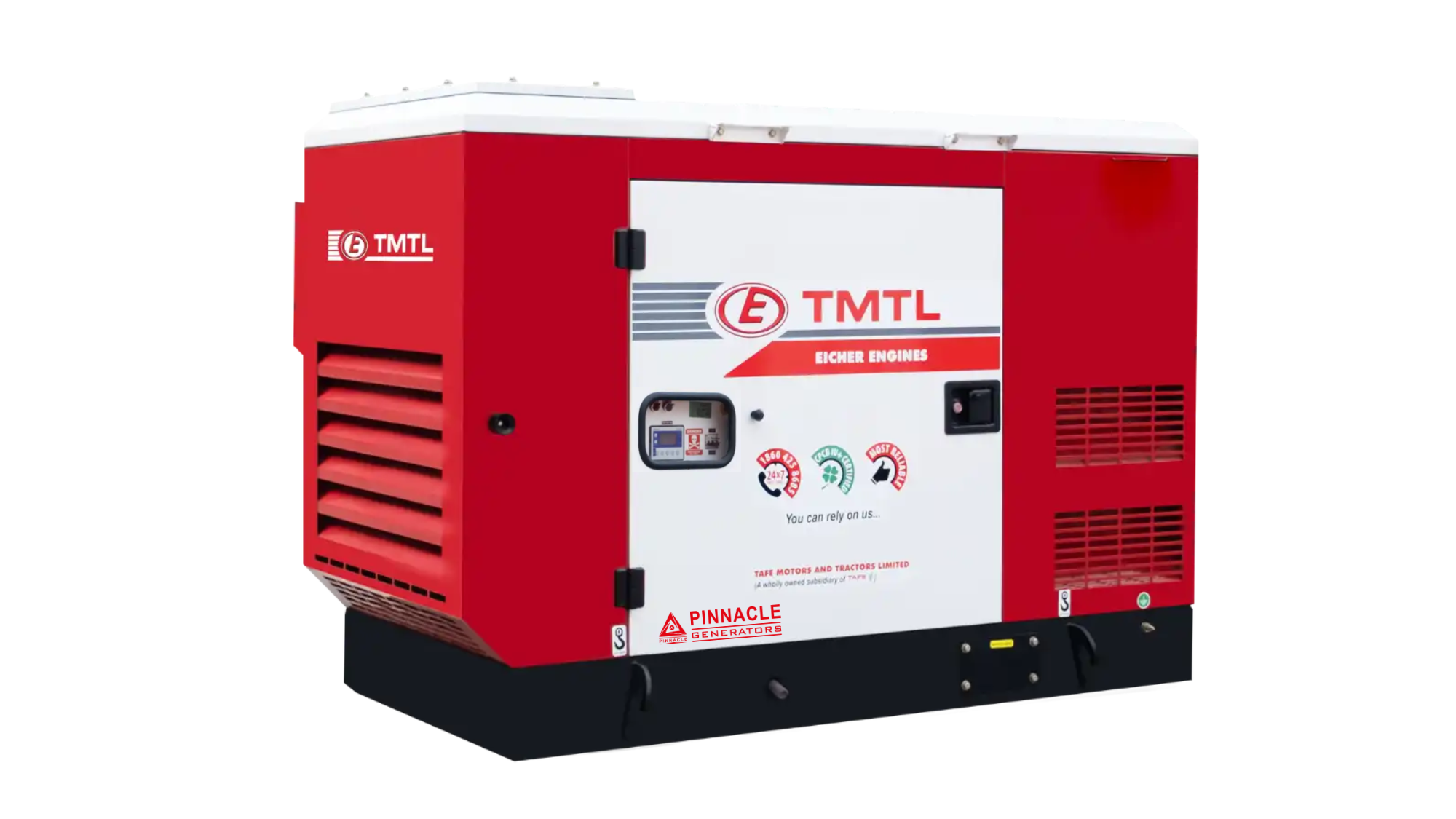

45 KVA - Image 1
Click to enlarge
40 KVA
40 KVA
Back to products
50 KVA
50 KVA

45 KVA

45 kVA Prime Power Performance

Power (kVA): 45 | Prime duty operation with TMTL engines ensures stable, efficient, and continuous power output for demanding applications.

Genset model: TMTL-45-SP, TMTL-45-TP | Engine Brand: TMTL Engines | CRS electronic G3 governing, high torque, and turbocharged technology ensure powerful and reliable performance.

Acoustic insulation: PU FR Acoustic Foam | CRCA sheet body with 40mm insulation ensures low noise, durability, and compact space-saving installation.

Fuel Tank: 100 Litres | Dimensions: 2350 X 1000 X 1425 mm | Weight: 1290 kg | Designed for optimized fuel usage, easy installation, and efficient performance.

Control panel: AMF/Manual options | Plus TMTL CARES, pan India service, low maintenance design, and best-in-class safety & reliability features for long-term performance.

Get Price Quote
Pinnaclegenerators Logo
Download Brochure
Category:

ENGINE

Engine Manufacturer : TAFE Motors and Tractors Limited
Engine Model : 333W0-EG040
Engine Brand: TMTL Engines
No. of Cylinders : 3
Aspiration : Turbo Charged Inter-cooled
Engine BHP (Gross) : 60
Reference Standard : Engine – BS: 5514, ISO: 3046, Genset – ISO : 8528
Displacement (cc) : 3298
Compression Ratio : 17.5±0.5 : 1
Type/Class of Governing : CRS Electronic G3
Bore x Stroke (mm) : 108×120
Type of cooling : Water Cooled
Lub oil Sump capacity (with filters) : 8.0
Engine Electrical System : 12V, 99/100 Ah

ALTERNATOR

Phase : 1 Phase-2 wire / 3 Phase-4 wire
Voltage : 230 V AC / 415 V AC
Power Alternator Type : Single Bearing, Brushless, Single / Three Phase, Insulation Class H, Voltage regulation +/- 1%, make – CG / Leroy Somer / Meccalte / Stamford
Power Factor : 0.8 lag
Rated speed / Freq : 1500 RPM/ 50Hz

  • Protection for Over / Under Voltage / Frequency / Speed
  • Over load
  • Canopy FAN fault
  • # Load unbalance
  • Low Lube oil pressure
  • High cylinder / water temperature
  • Low Fuel level
  • Radiator water low
  • Charging alternator / V-Belt failure etc.
  • Service due prompt - Control unit, will display the Service due alert based on running hours
  • Cold Shut-down provisions
  • EGR related errors – Warning, Low Inducement, Severe Inducement
  • Communication – CAN and RS-485

Warranty Terms

Warranty period covers 2 Years or 5000 Hours run* (whichever is earlier) Warranty on 5C covers 5 Years or 5000 Hours run* (whichever is earlier)
* Terms and conditions apply

Prime Power

Applicable for supplying power to varying electrical load for unlimited hours. Prime Power (PRP) is in accordance with ISO 8528.
10% overload capability is available in accordance with ISO 3046, AS 2789, DIN 6271 and BS 5514.
