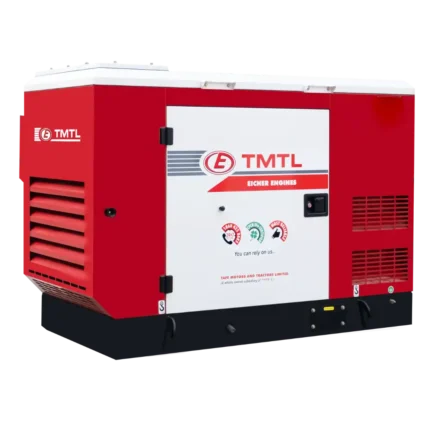

45 KVA
45 KVA
Back to products
15 kVA
15 kVA

50 KVA

Powerful 50 kVA Performance

Delivers reliable 50 kVA power with prime-duty capability, ensuring continuous and stable operation for demanding applications.

Powered by TMTL engines with advanced governing, high torque, and efficient cooling, ensuring smooth performance and long-term durability.

Acoustic insulation and compact design ensure low noise levels while allowing easy installation even in limited or rooftop spaces.

Large fuel tank capacity ensures extended running hours, while optimized efficiency reduces fuel consumption and operating costs.

AMF/manual control options provide flexible operation, while robust build and easy access design ensure safety, durability, and hassle-free maintenance.

Get Price Quote
Pinnaclegenerators Logo
Download Brochure
Category:

ENGINE

Engine Manufacturer : TAFE Motors and Tractors Limited
Engine Model : 333W0-EG060
Engine Brand: TMTL Engines
No. of Cylinders : 3
Aspiration : Turbo Charged Inter-cooled
Engine BHP (Gross) : 75
Reference Standard : Engine – BS: 5514, ISO: 3046, Genset – ISO : 8528
Displacement (cc) : 3298
Compression Ratio : 17.5±0.5 : 1
Type/Class of Governing : CRS Electronic G3
Bore x Stroke (mm) : 108×120
Type of cooling : Water Cooled
Lub oil Sump capacity (with filters) : 8.0
Engine Electrical System : 12V, 99/100 Ah

ALTERNATOR

Phase : 3 Phase-4 wire
Voltage : 415 V AC
Power Alternator Type : Single Bearing, Brushless, Single / Three Phase, Insulation Class H, Voltage regulation +/- 1%, make – CG / Leroy Somer / Meccalte / Stamford
Power Factor : 0.8 lag
Rated speed / Freq : 15000 RPM/ 50Hz

  • Protection for Over / Under Voltage / Frequency / Speed
  • Over load
  • Canopy FAN fault
  • Load unbalance
  • Low Lube oil pressure
  • High cylinder / water temperature
  • Low Fuel level
  • Radiator water low
  • Charging alternator / V-Belt failure etc.
  • Service due prompt - Control unit, will display the Service due alert based on running hours
  • Cold Shut-down provisions
  • EGR related errors – Warning, Low Inducement, Severe Inducement
  • Communication – CAN and RS-485

Warranty Terms

Warranty period covers 2 Years or 5000 Hours run* (whichever is earlier) Warranty on 5C covers 5 Years or 5000 Hours run* (whichever is earlier)
* Terms and conditions apply

Prime Power

Applicable for supplying power to varying electrical load for unlimited hours. Prime Power (PRP) is in accordance with ISO 8528.
10% overload capability is available in accordance with ISO 3046, AS 2789, DIN 6271 and BS 5514.
